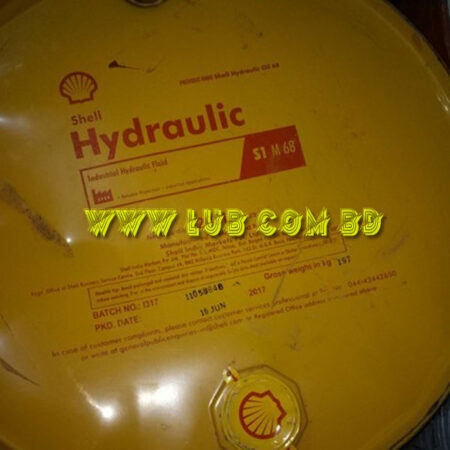

Shell Hydraulic Fluid S1 M 68_200Liter

Shell Hydraulic S1 M 68 Main Applications

Industrial hydraulic systems
Suitable for a wide range of hydraulic power applications found in industrial environments. Mobile hydraulic fluid power transmission systems
Shell Hydraulic S1 M 68 fluids can be used in mobile hydraulic power applications such as excavators and cranes. Operating under moderate duty cycles, except where significant ambient temperature variations are encountered. For more demanding and specialized applications, the Shell Tellus range of fluids provide superior performance for systems where the stress on the fluid is high and ultra-

Specifications, Approvals & Recommendations

• ISO 11158 (HM fluids)
• DIN 51524 Part 2 HLP type Compatibility & Miscibility
  • Compatibility
    Shell Hydraulic S1 M 68 fluids are suitable for use with most Hydraulic pumps. However, please consult your Shell representative before using in pumps containing silver plated components.
  • Fluid Compatibility
    Shell Hydraulic S1 M 68 fluids are compatible with most other mineral oil based Hydraulic fluids. However, mineral oil Hydraulic fluids should not be mixed with other fluid types (e.g. environmentally acceptable or fire resistant fluids).
  • Seal & Paint Compatibility
    Shell Hydraulic S1 M 68 fluids are compatible with seal materials and paints normally specified for use with mineral oils.
